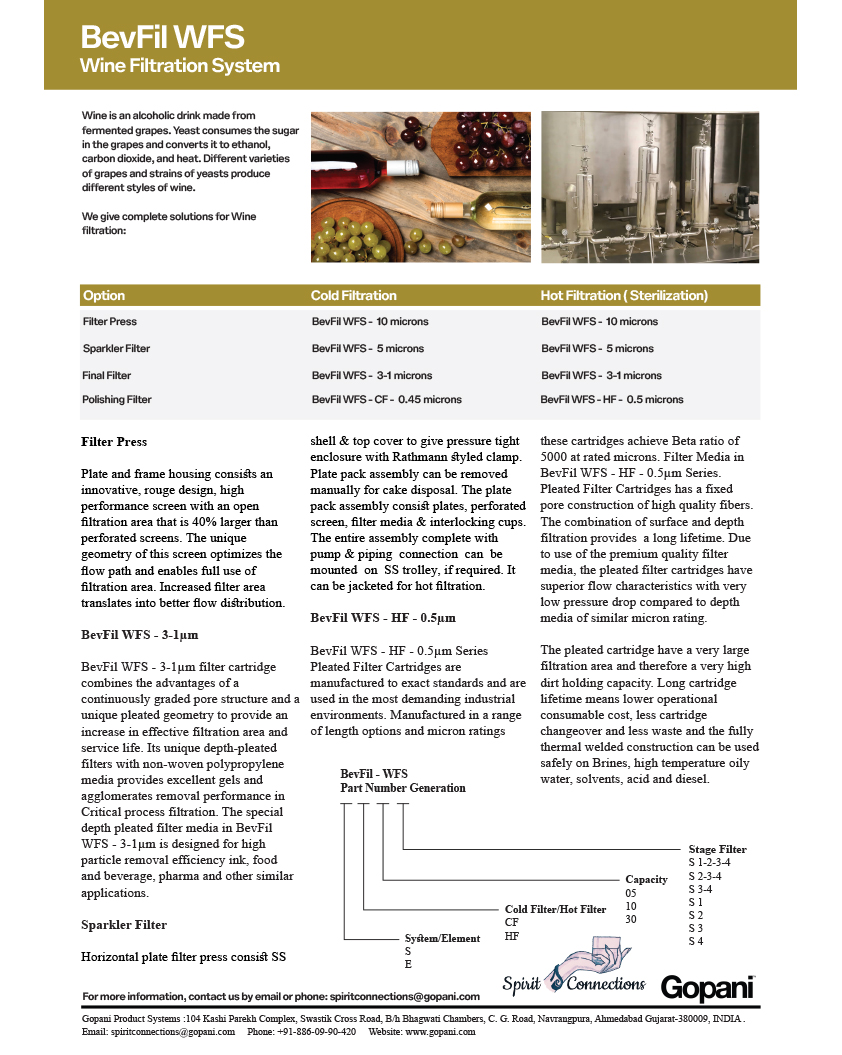

Wine Filtration System


Wine is an alcoholic drink made from fermented grapes. Yeast consumes the sugar in the grapes and converts it to ethanol, carbon dioxide, and heat. Different varieties of grapes and strains of yeasts produce different styles of wine.

Filter Press


Plate and frame housing consists an innovative, rouge design, high performance screen with an open filtration area that is 40% larger than perforated screens. The unique geometry of this screen optimizes the flow path and enables full use of filtration area. Increased filter area translates into better flow distribution.

BevFil WFS - 3-1µm


BevFil WFS - 3-1µm filter cartridge combines the advantages of a continuously graded pore structure and a unique pleated geometry to provide an increase in effective filtration area and service life. Its unique depth-pleated filters with non-woven polypropylene media provides excellent gels and agglomerates removal performance in Critical process filtration. The special depth pleated filter media in BevFil WFS - 3-1µm is designed for high particle removal efficiency ink, food and beverage, pharma and other similar applications.

About

Sparkler Filter


Horizontal plate filter press consist SS shell & top cover to give pressure tight enclosure with Rathmann styled clamp. Plate pack assembly can be removed manually for cake disposal. The plate pack assembly consist plates, perforated screen, filter media & interlocking cups. The entire assembly complete with pump & piping connection can be mounted on SS trolley, if required. It can be jacketed for hot filtration.

BevFil WFS - HF - 0.5µm


BevFil WFS - HF - 0.5µm Series Pleated Filter Cartridges are manufactured to exact standards and are used in the most demanding industrial environments. Manufactured in a range of length options and micron ratings these cartridges achieve Beta ratio of 5000 at rated microns. Filter Media in BevFil WFS - HF - 0.5µm Series. Pleated Filter Cartridges has a fixed pore construction of high quality fibers. The combination of surface and depth filtration provides a long lifetime. Due to use of the premium quality filter media, the pleated filter cartridges have superior flow characteristics with very low pressure drop compared to depth media of similar micron rating. The pleated cartridge have a very large filtration area and therefore a very high dirt holding capacity. Long cartridge lifetime means lower operational consumable cost, less cartridge changeover and less waste and the fully thermal welded construction can be used safely on Brines, high temperature oily water, solvents, acid and diesel.
